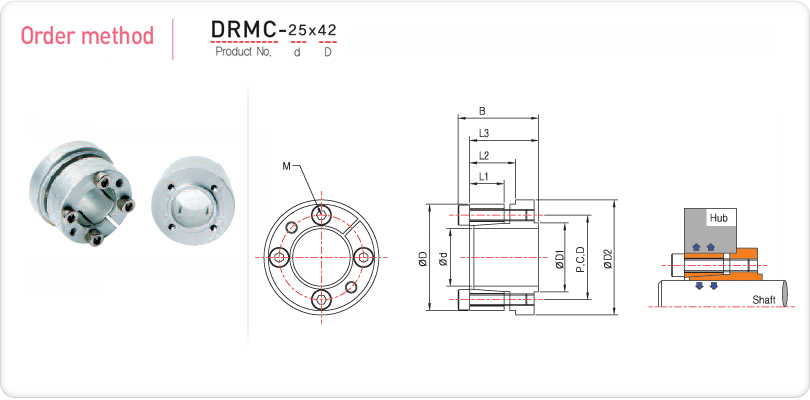

 |  DRMC

- DRMC is available for the shaft with a narrow diameter
- Material is aluminum, Bolt is plated
- High-speed use as low inertia
- Decision on position is free.
- It has a shaft on the hub unmovable when assembled.
- As fewer bolts, desorption time is shortened.
- Bearing pressure plate is designed on the body




- Surface roughness : Rt max16㎛
- Processing tolerance(Max) - Shaft : h7, Hub : H7

- Aluminum pulley | aluminum timing belt | resins gear | etc
