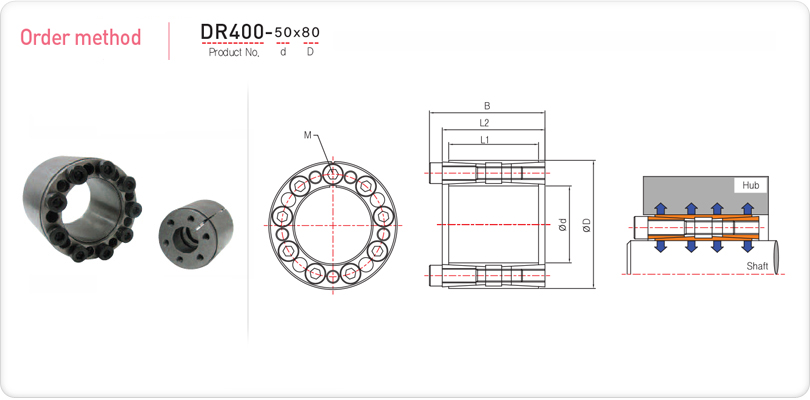

- It is a kind of Locking Element with high transmission torque.
- It has the same inner and outer dimension with DR200 type.
- It can be replaced when using 2pieces of DR200 types in a row.
- Centering function is available
- It has a shaft on the hub unmovable when assembled. |
|
| |
 |
- Surface roughness : Rt max16?
- Processing tolerance(Max) - Shaft : h8, Hub : H8 |
|
| |
 |
| - Gear | pulley | sprocket | cam | etc |
|
|
|
|
| |
|
|
