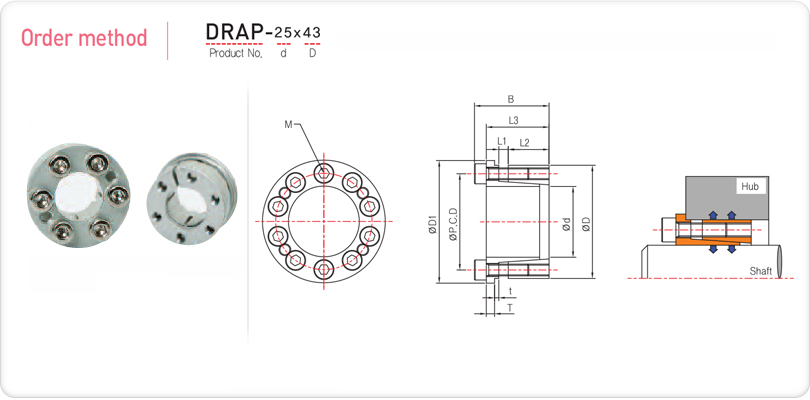

- DRAP is available for the shaft with a narrow diameter
- Material is aluminum
- Bolt is plated
- High-speed use as low inertia
- It has a shaft on the hub unmovable when assembled.
- Centering function is available.
- It has a small bearing pressure, but a large transmission.


- Surface roughness : Rt max16㎛
- Processing tolerance(Max) - Shaft : h7, Hub : H7

- Aluminum pulley | aluminum timing belt | resins gear | etc
