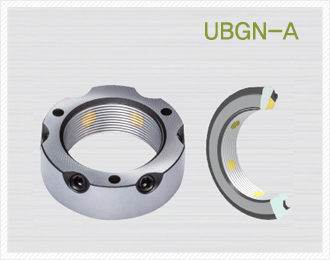

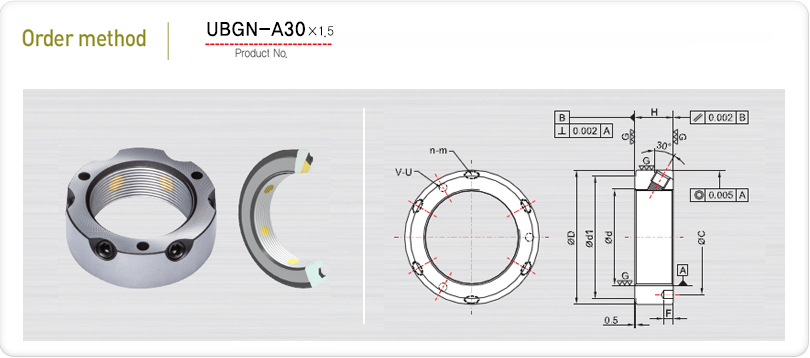

- Placing set-screws 60°relative to the radial plane, this type
provides
easy concentric fitting.
- Also 6 set-screws provide relatively high loosening torque.
- Precisely grinded inner threads, clamping face, trailing rim and
outer skirt have enhanced accuracy. |
|
| |
 |
- Material : SCM440(42CrMo4)
- Hardness : HRC 48~52
- Thread Tolerance : ISO 4H
- Squareness : 0.002mm
- Parallelism : 0.002mm
- Concentricity : 0.005mm |
|
|
|
| |
 |
| |
|
 |
|
