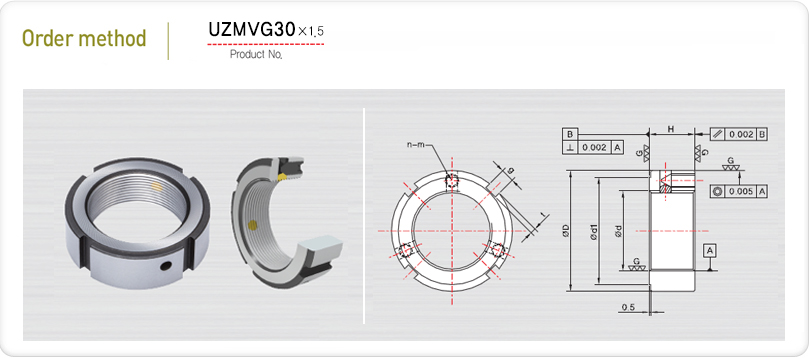

- This type locks set-screws from the axial direction.
- It is applicable when there are restrictions of side space.
- The thread, clamping face, trailing rims and outer skirts have been
precisely grinded to satisfy high precision during high speed rotation. |
|
| |
 |
- Material : SCM440(42CrMo4)
- Hardness : HRC 28~32
- Thread Tolerance : ISO 4H
- Squareness : 0.002mm
- Parallelism : 0.002mm
- Concentricity : 0.005mm |
|
|
|
| |
 |
| |
|
 |
|
