- Due to the thickness comparatively thinner than other types,
this type is
especially applicable when there are space restrictions.

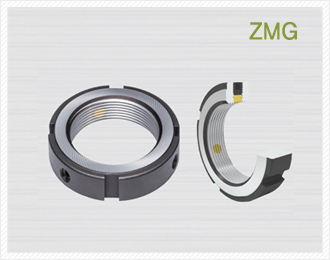

- This type is a grinding locknut that its clamping face and thread are
finely grinded at the same time and the squareness is well managed. |
|
| |
 |
- Material : SCM440(42CrMo4)
- Hardness : HRC 28~32
- Thread Tolerance : ISO 4H
- Manufacturing Method : High Precision Grinding
- Squareness : 0.002mm |
|
|
|
| |
 |
| |
|
 |
|
