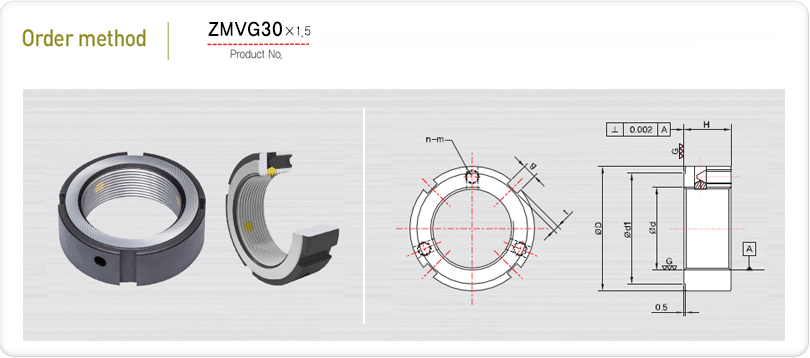

- This type locks set-screws from the axial direction.
- It is applicable when there are restrictions of side space.
- This type is a grinding locknut that its clamping face and
thread are
finely grinded at the same time and the squareness is well managed. |
|
| |
 |
- Material : SCM440(42CrMo4)
- Hardness : HRC 28~32
- Thread Tolerance : ISO 4H
- Manufacturing Method : High Precision Grinding
- Squareness : 0.002mm |
|
|
|
| |
 |
| |
|
 |
|
