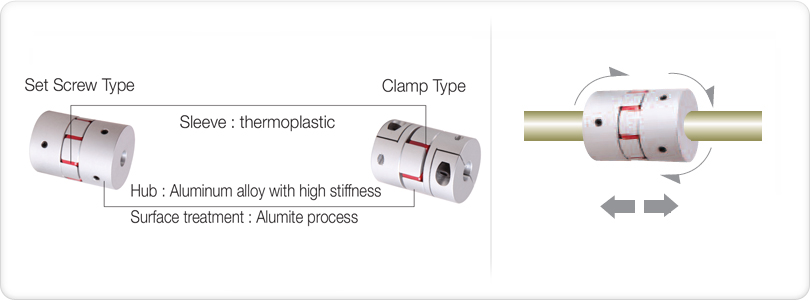

- Unique structure as sleeve is pressed into both hub.
- Zero backlash available in low torque
- Outstanding absorbing eccentricity, declination, tosional vibration
- Oil-resistance and electric insulation
- Forward and reverse are the same.
- Usable temperature : -30˚C ~ 90˚C

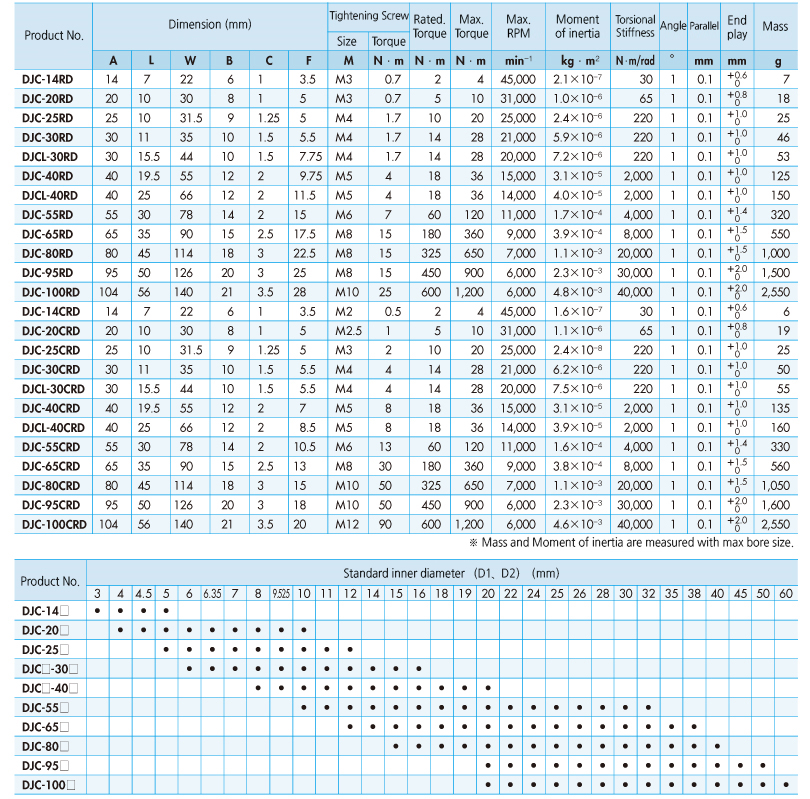

- Various inner diameter for standardization |
|
|
|
| |
|
| |
 |
 |
| |
 |
- Servo motor
- Stepping motor
- General wide use motor
-Encoder |
|
| |
 |
- All products are included set screw and cap screw.
- We can supply nonstandard Inner Diameter and key seat.
- We encourage h7 for tolerance of Inner Diameter.

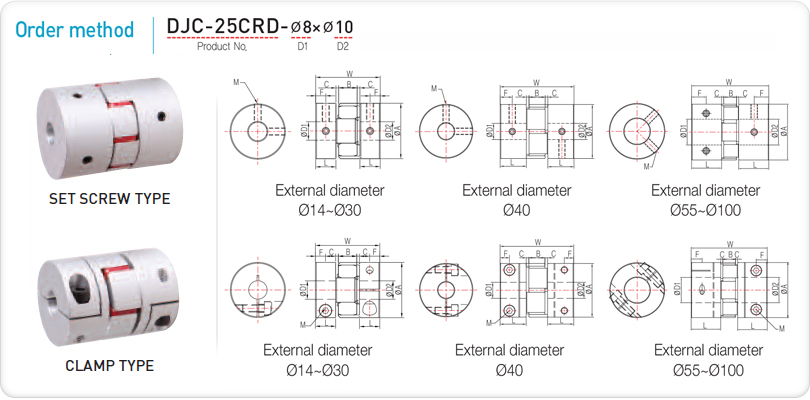

- You can order DJC with one side is clamp type and another side is
- set screw type.

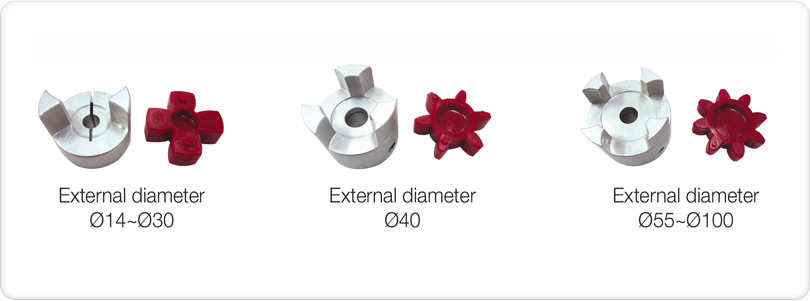

- You can order clamp split type when out diameter size is over Ø40. |
|
|
|
|
| |
 |
| |
| |
 |
| |
 |
| |
|
