- Disk type flexible coupling
- Zero backlash

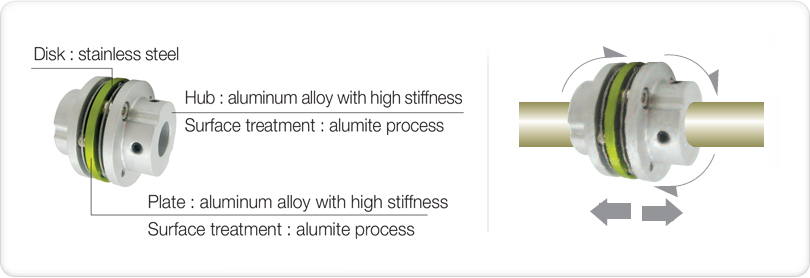

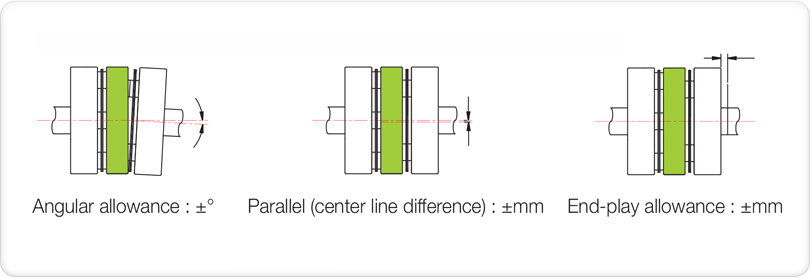

- Stainless disc allows eccentricity, declination and end play.
- Forward and reverse are the same features.
- Outstanding oil-resistance and anti-chemical

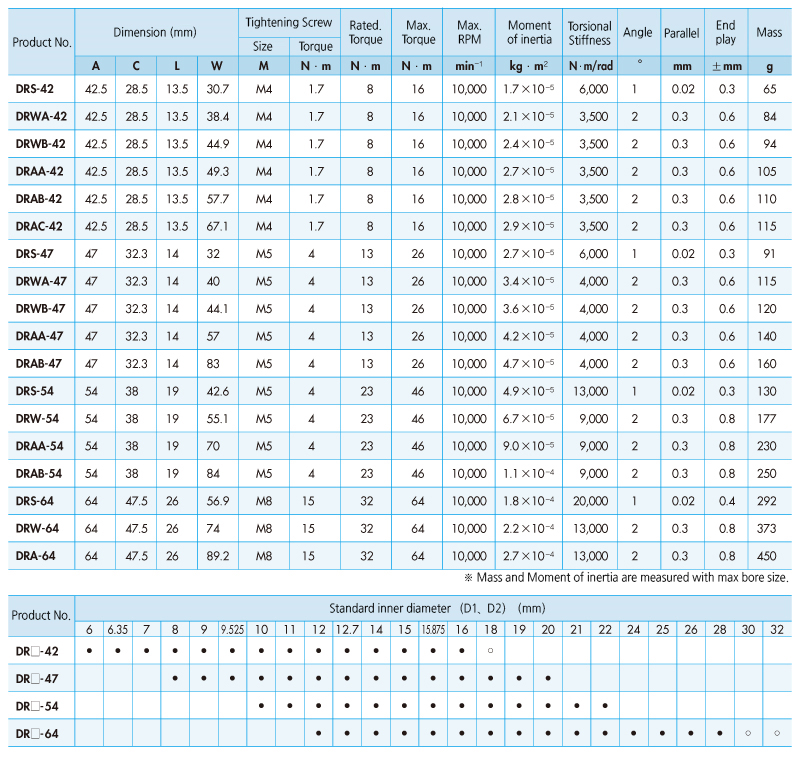

- A variety of sizes are available. |
|
|
|
| |
 |
 |
| |
 |
 |
| |
 |
- Servo motor
- Stepping motor
- General wide use motor
- Encoder |
|
| |
 |
- All products are included set screw and cap screw.
- We can supply nonstandard Inner Diameter and key seat.
- Don`t re-assemble after disassemble randomly.
- You can order different types of both hubs.
- We encourage h7 for tolerance of Inner Diameter

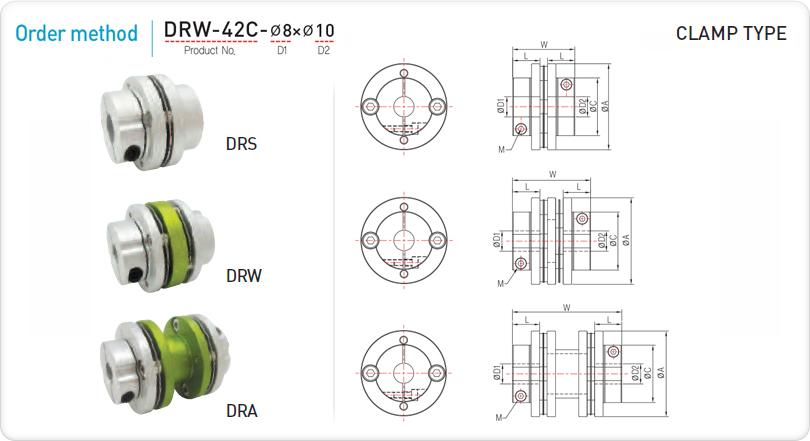

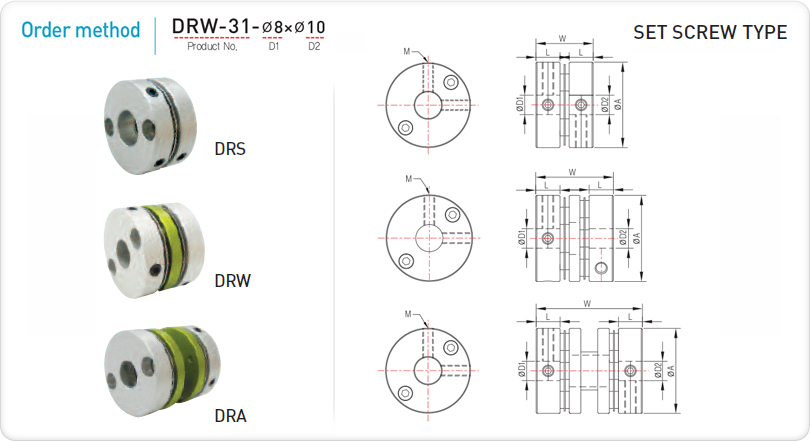

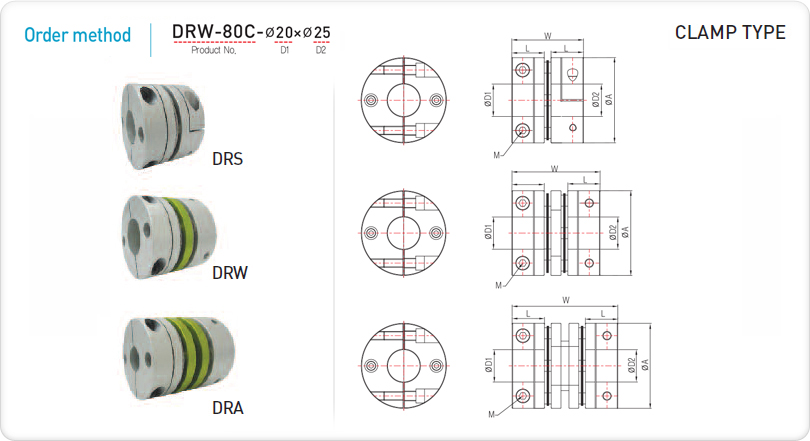

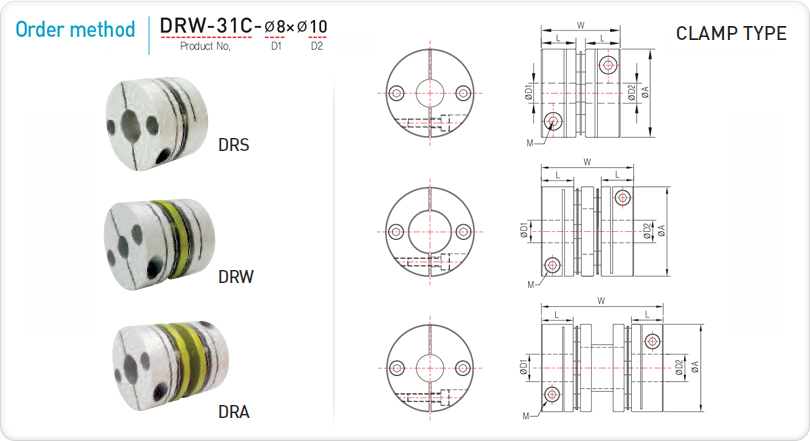

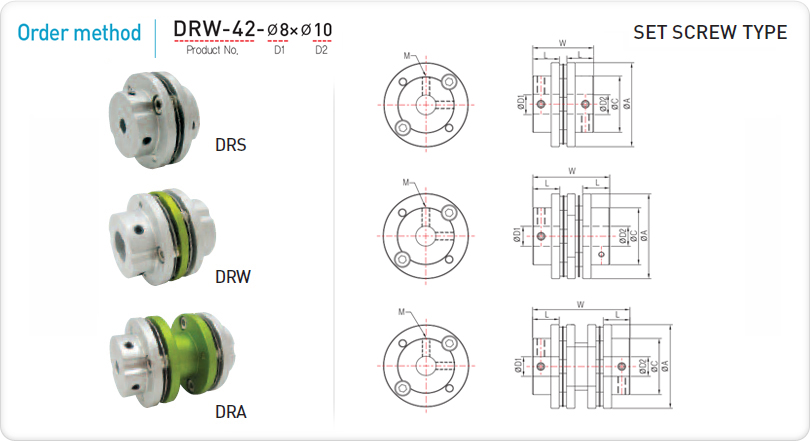

- You can order with one side is clamp type and another side is set screw type.
- You can ask additional disk quantity. |
|
|
|
|
| |
 |
| |
| |
 |
| |
 |
| |
<| |
 |
| |
 |
| |
| |
 |
|
