- Bigger eccentricity and declination allowed as hub and space are slipped.
- Less shaft load caused by misalignment, so reduce to force to the shaft.

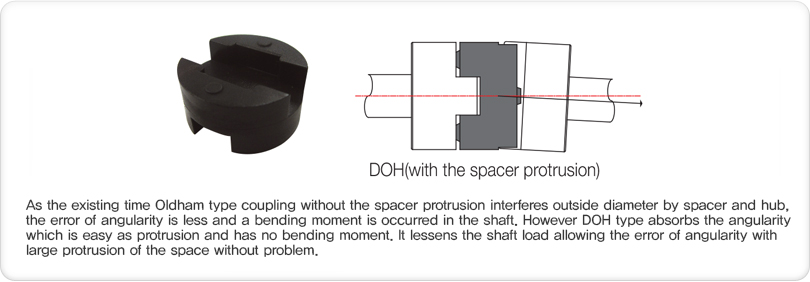

- Absorbs the angularity which is easy for spacer protrusion.
- Absorption vibration and electric insulation
- It is easy to assemble. ( easy replacement)
- Usable temperature is -20°C ~ 80°C |
|
|
|
| |
|
| |
 |
 |
| |
 |
- Servo motor
- Stepping motor
- General wide use motor
- Encoder |
|
| |
 |

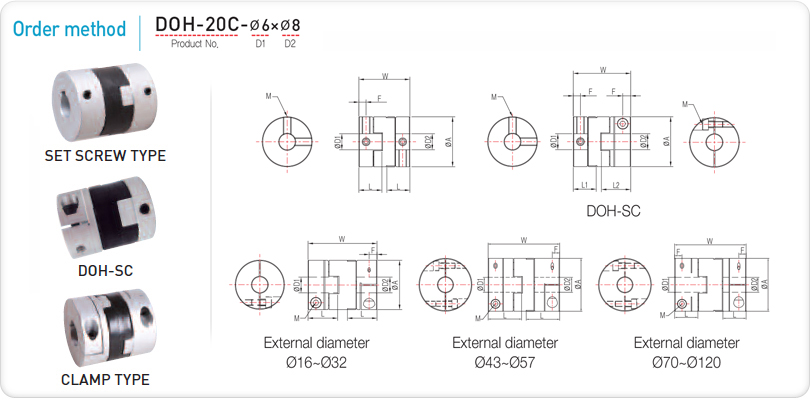

- All products are included set screw and cap screw.
- We can supply nonstandard Inner Diameter and key seat.
- We encourage h7 for tolerance of Inner Diameter.
- We can penetrate into spacer. |
|
|
|
|
| |
 |
| |
| |
 |
| |
 |
| |
|
